Gallery:ISFS Setup
Photographs of field experiment


ISFS Marshall setup 1.jpg

Digging out hole for soil sensors


ISFS Marshall setup 2.jpg

The sensors ready to install


ISFS Marshall setup 3.jpg

Ready to install soil moisture probe


ISFS Marshall setup 4.jpg

Soil moisture and Soil heat capacity probes placed. Note that moisture probe is only seated 1/2 way in "undisturbed" soil due to many rocks in soil. The hole will be backfilled to surround this probe.


ISFS Marshall setup 5.jpg

Same as previous, with the addition of the soil heat flux plate to the left.


ISFS Marshall setup 6.jpg

- Beginning to fill up hole (note lots of small rocks!)
- Added soil temperature probe to left of hole


ISFS Marshall setup 7.jpg

Sensor installation mostly complete.


ISFS Marshall setup 8.jpg

Setting of soil installation under radiometer stand. Cables connect to logger box on stand.


ISFS Marshall setup 9.jpg

A final view of the soil installation. The site was tapped many times to get loose dirt to fill in any gaps between the rocks. It still would be best to have a good rain before using the data.


ISFS Marshall setup 10.jpg

View from the SE of the tower partially instrumented with top 4 levels.


ISFS Marshall setup 11.jpg

View from SSE of tower, radiometer stand, and rain gauge being installed.


ISFS Marshall setup 12.jpg

View of site from W


ISFS Platteville setup 1.jpg

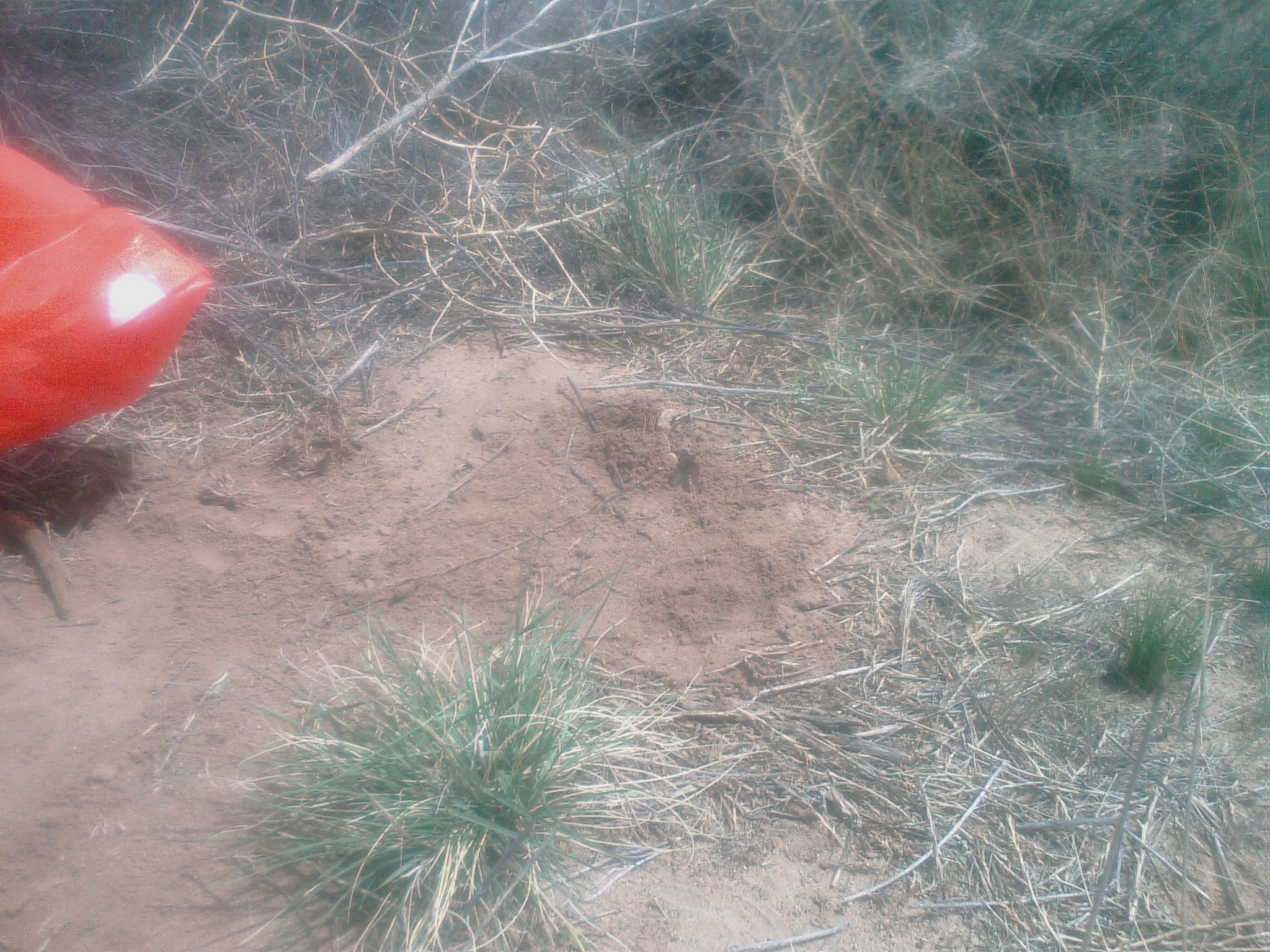

Site of soil sensors after being installed


ISFS Platteville setup 2.jpg

Site of soil sensors marked with fence post with cables protected by orange plastic bag


ISFS Platteville setup 3.jpg

View to N


ISFS Platteville setup 4.jpg

View to E


ISFS Platteville setup 5.jpg

View to S. Note oil tank farm (a source of CO2?)


ISFS Platteville setup 6.jpg

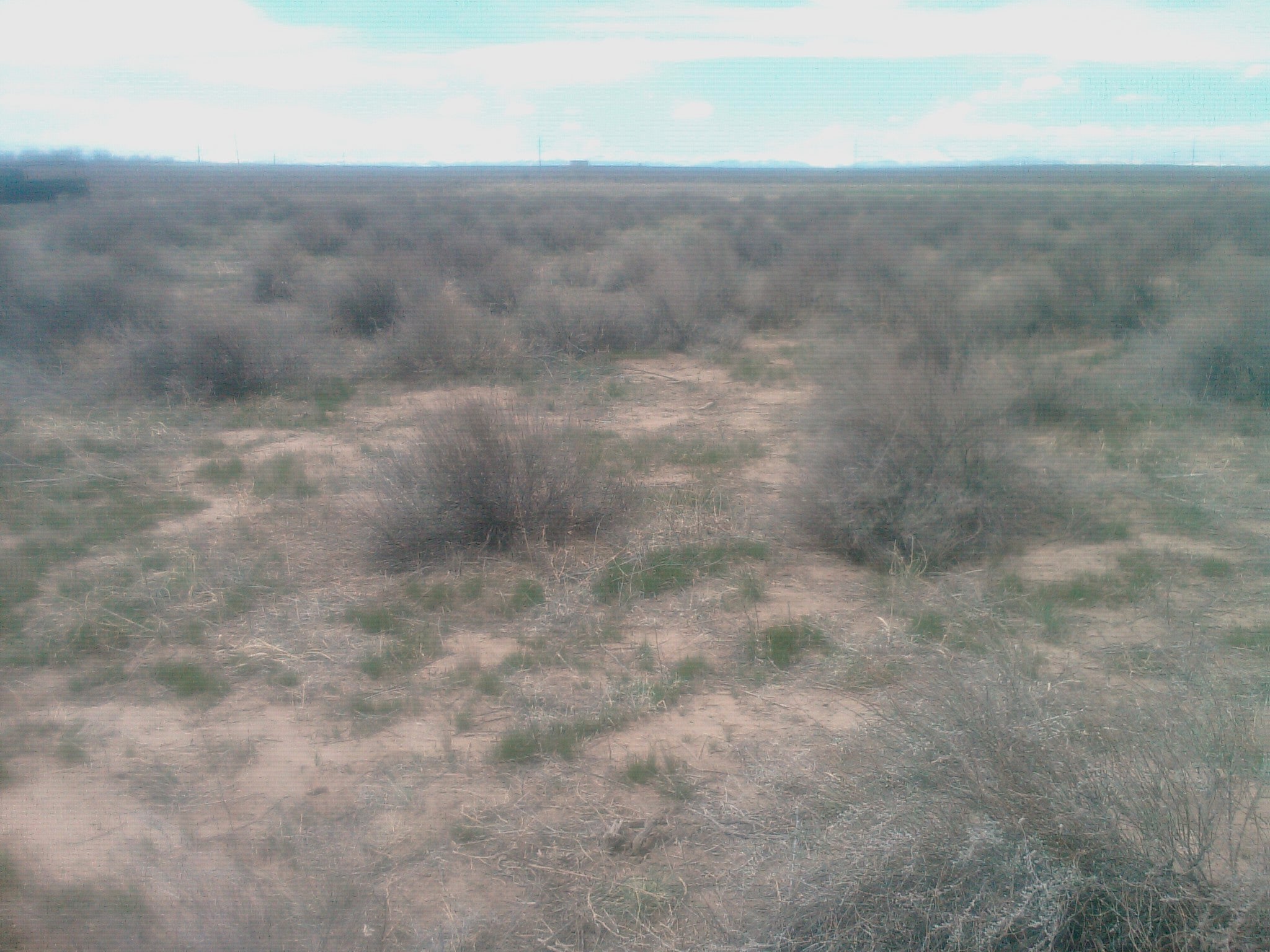

View to W. Note mountains on horizon. Pickup truck is on track 75m away.


ISFS Platteville setup 7.jpg

With next photo, close-up of tank transfer station to south of site.


ISFS Platteville setup 8.jpg




ISFF Platteville setup-radiation.jpg
